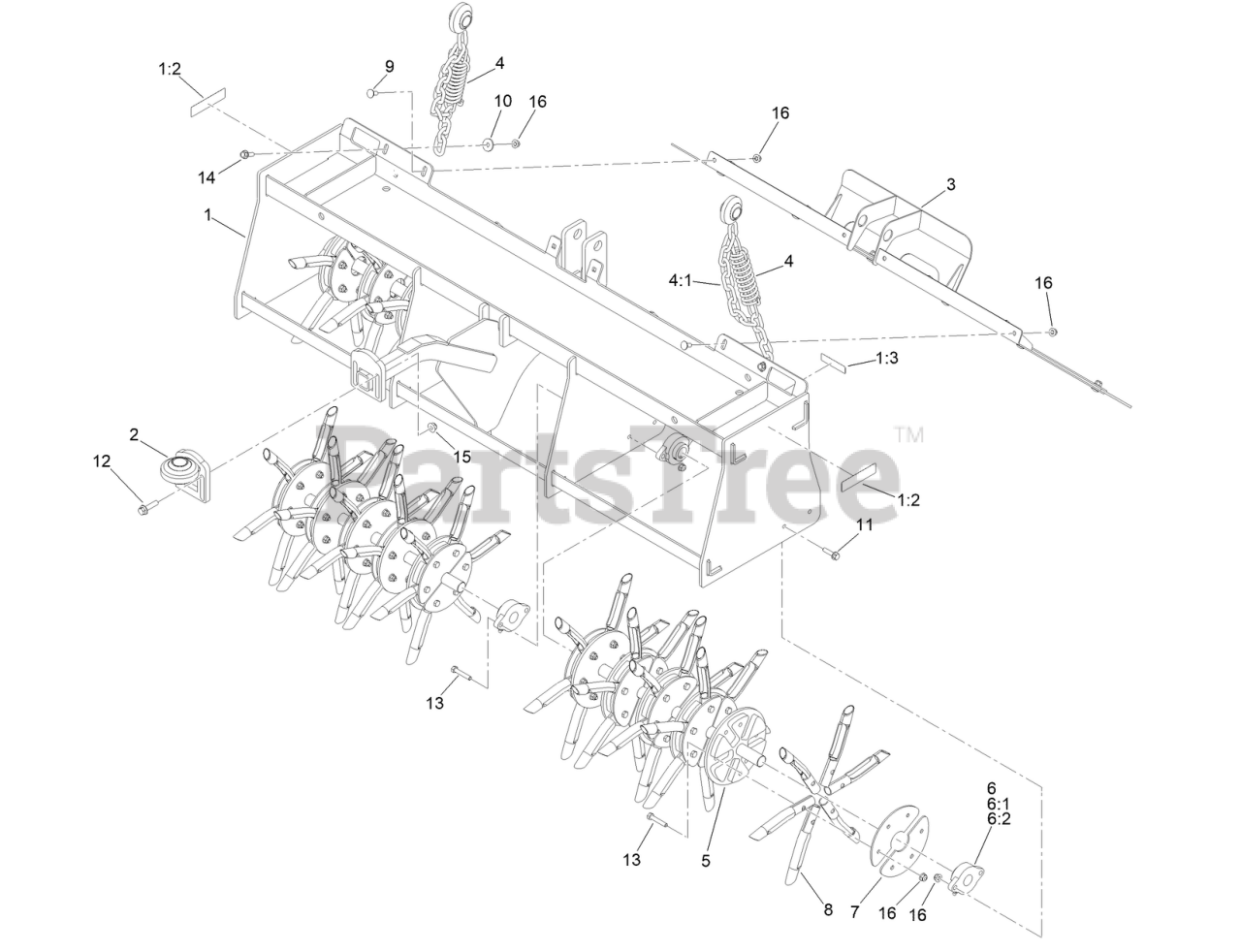

ZA5850 - Exmark 50" Z-Aerate Stand-On Aerator, Kohler CH740 (SN: 416150475 - 417930745) (Rev A) (2024) Aerator Head Assembly Parts Diagram

50" Z-Aerate Stand-On Aerator, Kohler CH740

Aerator Head Assembly Parts Diagram

  • Title

1

Exmark 147-3344

AERATOR HEAD 50 W/DECALS

$1655.99

$

Usually ships in 3-6 days

0

1:2

Exmark 121-6162

DECAL-WARNING, TINES

$5.99

$

Usually ships in 3-6 days

0

1:3

Exmark 133-8061

DECAL-WARNING

$1.49

$

Usually ships in 3-6 days

0

2

Exmark 135-9370

MOUNT-SWIVEL BRG,AER HEAD

$201.99

$

Usually ships in 3-6 days

0

3

Exmark 147-3754

Dirt Flap ASM

$

$

Currently unavailable

4

Exmark 135-7099

SWIVEL-CHAIN ASM

$335.99

$

Usually ships in 3-6 days

0

4:1

Exmark 135-9373

Z-PLUG DRAWBAR SPRING
(Superseded to 135-7099)

$335.99

$

Usually ships in 3-6 days

0

5

Exmark 145-8310-03

TINE-REEL

$403.99

$

Usually ships in 3-6 days

0

6

Exmark 107-7851

BEARING-FLANGE, 2 BOLT

$92.99

$

Usually ships in 3-6 days

0

6:1

Exmark 302-5

Zerk 1/4-28 Str Thrd Forming

$3.99

$

In Stock, Qty 20+

0

6:2

Exmark 3245-35

SCREW-SET, HSH

$0.99

$

In Stock, Qty 8

0

7

Exmark 147-6604-03

PLATE-RETAINER, TINE

$9.99

$

Usually ships in 3-6 days

0

8

Exmark 126-2143

TINE-CORING (3/4 INCH)

$12.99

$

In Stock, Qty 20+

0

9

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

10

Exmark 115-7109

WASHER-FLAT

$1.49

$

In Stock, Qty 13

0

11

Exmark 3234-36

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

12

Exmark 114-4681

SCREW-HHF

$3.99

$

In Stock, Qty 6

0

13

Exmark 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

14

Exmark 3234-17

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

15

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
