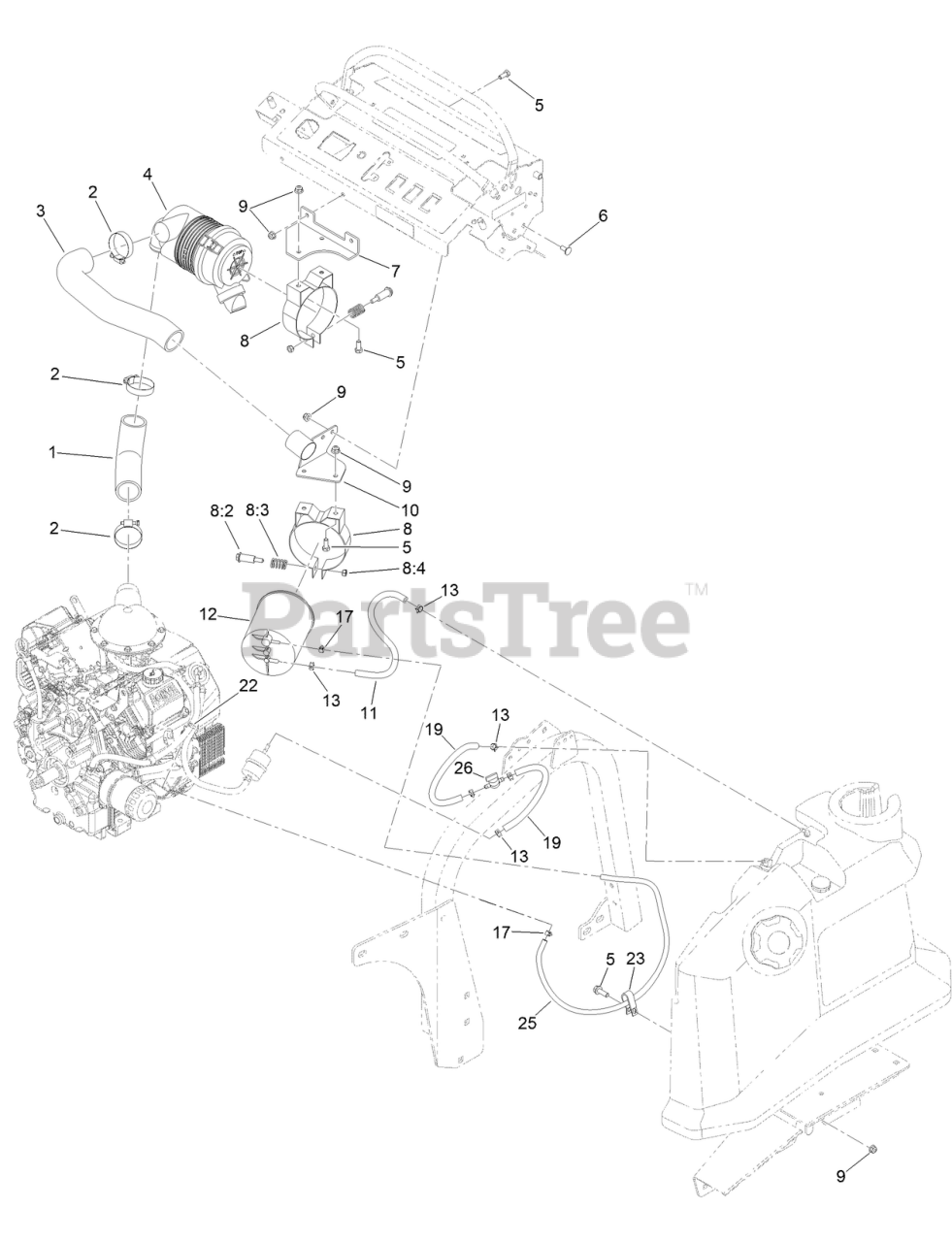

ZA5850 - Exmark 50" Z-Aerate Stand-On Aerator, Kohler CH740 (SN: 416150475 - 417930745) (Rev A) (2024) Engine Air Cleaner and Fuel System Assembly Parts Diagram

50" Z-Aerate Stand-On Aerator, Kohler CH740

Engine Air Cleaner and Fuel System Assembly Parts Diagram

  • Title

1

Exmark 144-7168

HOSE-INTAKE, AIR

$27.99

$

Usually ships in 3-6 days

0

2

Exmark 2412-92

CLAMP-HOSE

$3.49

$

Usually ships in 3-6 days

0

3

Exmark 147-3312

HOSE-INLET ASM

$66.99

$

Usually ships in 3-6 days

0

4

Exmark 117-9989

AIR CLEANER ASM

$220.99

$

In Stock, only 1 left!

0

5

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

7

Exmark 144-7167-03

BRACKET-MOUNT, AIR-FILTER

$23.99

$

Usually ships in 3-6 days

0

8

Exmark 93-2191

AIR CLEANER MOUNTING BAND ASM

$75.99

$

Usually ships in 3-6 days

0

8:2

Exmark 94-3653

Bolt

$23.99

$

Usually ships in 3-6 days

0

8:3

Exmark 94-3654

Spring

$11.99

$

Usually ships in 3-6 days

0

8:4

Exmark 33024-00

Nut-Lock, NI

$1.49

$

Usually ships in 3-6 days

0

9

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Exmark 147-3317-01

CARB CANISTER MOUNT ASM

$52.99

$

Usually ships in 3-6 days

0

11

Exmark 110-4895

HOSE-FUEL

$20.99

$

Usually ships in 3-6 days

0

12

Exmark 116-1442

CANISTER-CARBON, 1200CC

$174.99

$

Usually ships in 3-6 days

0

13

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

17

Exmark 2412-146

CLAMP-HOSE

$1.99

$

In Stock, Qty 6

0

19

Exmark 110-3447

HOSE-FUEL

$9.49

$

Usually ships in 3-6 days

0

22

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

23

Exmark 92-5753

CLAMP-HOSE

$6.49

$

Usually ships in 3-6 days

0

25

Exmark 140-4956

Hose-Fuel

$32.99

$

Usually ships in 3-6 days

0

26

Exmark 1-603770

VALVE-FUEL

$9.49

$

In Stock, only 4 left!

0
