ZS4230 - Exmark Z-Spray Junior Stand-on Sprayer, 5 GPM Pump (SN: 404314159 - 406294344) (2019) Hopper Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 5 GPM Pump

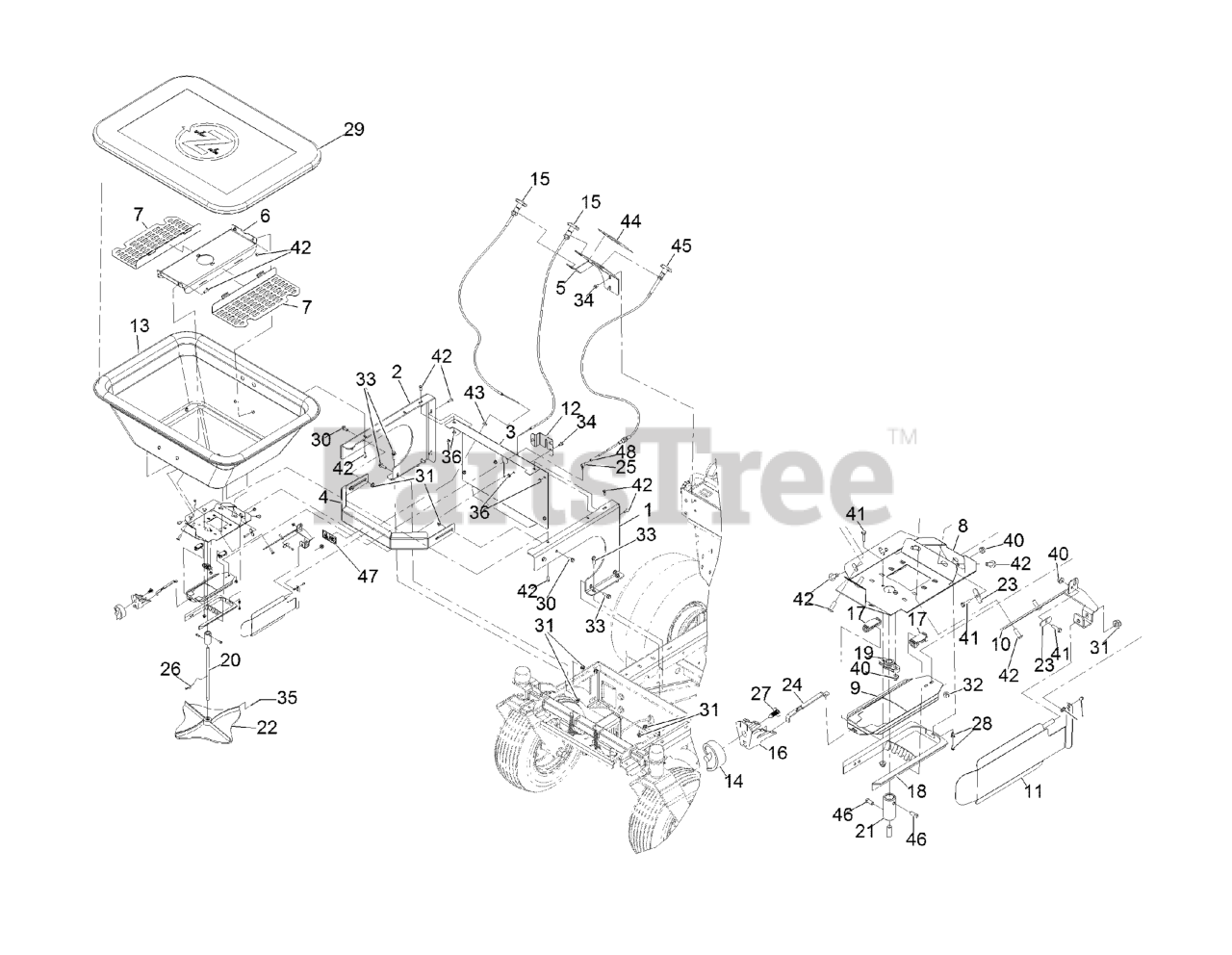

Hopper Assembly Parts Diagram

  • Title

1

Exmark 135-5533

Side-Hopper, Rt

$222.99

$

Usually ships in 3-6 days

0

2

Exmark 135-5535

Side-Hopper, Lt

$222.99

$

Usually ships in 3-6 days

0

3

Exmark 135-5557

Backshield-Hopper

$284.99

$

Usually ships in 3-6 days

0

4

Exmark 135-5567

BUMPER-FRONT, HOPPER

$64.99

$

Usually ships in 3-6 days

0

5

Exmark 135-5505

Mount-Speedometer

$70.99

$

Usually ships in 3-6 days

0

6

Exmark 135-5556

Pan-Hopper, 150

$117.99

$

Usually ships in 3-6 days

0

7

Exmark 135-5559

Screen-Hopper, 150

$56.99

$

Usually ships in 3-6 days

0

8

Exmark 135-5549

Plate-Base, Hopper

$64.99

$

Usually ships in 3-6 days

0

9

Exmark 135-5564

Door-Slide, Hopper

$35.99

$

Usually ships in 3-6 days

0

10

Exmark 135-5531

Mount-Deflector, Side

$41.99

$

Usually ships in 3-6 days

0

11

Exmark 135-5589

Deflector-Side, Spreader

$67.99

$

Usually ships in 3-6 days

0

12

Exmark 135-5563

Bracket-Hopper, 150 Cable Offset

$23.99

$

Usually ships in 3-6 days

0

13

Exmark 135-6010

Hopper-150Lb

$

$

Not available

14

Exmark 126-0988

DIAL
(Superseded to 142-3359)

$13.99

$

In Stock, only 3 left!

0

15

Exmark 135-5931

CABLE-PUSH/PULL

$64.99

$

In Stock, Qty 18

0

16

Exmark 126-0985

MOUNT-DIAL
(Superseded to 142-3319)

$3.49

$

In Stock, Qty 20+

0

17

Exmark 126-0990

GUIDE-RATE, GATE
(Superseded to 142-3316)

$2.49

$

In Stock, Qty 20+

0

18

Exmark 126-0991

DIFFUSER

$41.99

$

Usually ships in 3-6 days

0

19

Exmark 135-5943

BEARING-FLANGE

$6.49

$

In Stock, Qty 7

0

20

Exmark 135-6053

Shaft-Hopper, 150

$33.99

$

Usually ships in 3-6 days

0

21

Exmark 135-5937

COUPLER-SS

$34.99

$

In Stock, only 1 left!

0

22

Exmark 135-5954

SPINNER-SPREADER
(Superseded to 142-3506)

$49.99

$

In Stock, only 2 left!

0

23

Exmark 135-5569

RETAINER, CABLE

$2.49

$

In Stock, Qty 5

0

24

Exmark 135-5965

LINKAGE-GATE, RATE

$33.99

$

In Stock, only 3 left!

0

25

Exmark 135-5682

BALL JOINT-SS

$59.99

$

In Stock, only 2 left!

0

26

Exmark 135-5957

WIRE-AGITATOR
(Superseded to 142-3666)

$4.99

$

In Stock, Qty 8

0

27

Exmark 126-0986

CLIP
(Superseded to 88-1080)

$10.99

$

In Stock, only 2 left!

0

28

Exmark 135-5961

RETAINER-CABLE, WIRE

$5.49

$

In Stock, Qty 6

0

29

Exmark 135-6145

COVER-HOPPER, LARGE
(Superseded to 135-7981)

$84.99

$

In Stock, only 3 left!

0

30

Exmark 126-2712

SCREW-HHF

$5.99

$

Usually ships in 3-6 days

0

31

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 15

0

32

Exmark HDW05856

Nut,NYL Lock,#10-32,ST/ST 18-8

$1.49

$

In Stock, only 3 left!

0

33

Exmark 135-6272

SCREW-HHF

$3.49

$

In Stock, Qty 6

0

34

Exmark 135-6280

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

35

Exmark 135-6340

PIN-COTTER

$2.49

$

In Stock, only 3 left!

0

36

Exmark 135-6108

Nut-Hex Flange

$1.99

$

Usually ships in 3-6 days

0

40

Exmark 135-6342

Nut-Hex Flange

$2.49

$

In Stock, only 4 left!

0

41

Exmark 135-6356

SCREW-HH

$1.99

$

In Stock, only 2 left!

0

42

Exmark 135-7080

Screw-Hsbhf

$3.49

$

Usually ships in 3-6 days

0

43

Exmark 135-5988

Grommet-Rubber

$2.49

$

Usually ships in 3-6 days

0

44

Exmark 135-6279

DECAL-HOPPER CONTROL

$7.49

$

Usually ships in 3-6 days

0

45

Exmark 135-5935

CABLE-PUSH/PULL

$130.99

$

In Stock, only 2 left!

0

46

Exmark 3241-7

Screw-SQH

$4.49

$

In Stock, only 2 left!

0

47

Exmark 135-6725

Decal-Dismemberment Hazard

$4.99

$

Usually ships in 3-6 days

0

48

Exmark 520-0019

Nut,Hex Jam Mch Scr,10-32,Sst

$0.99

$

In Stock, only 3 left!

0
