ZS4630 - Exmark Z-Spray Intermediate Stand-on Sprayer, 5 GPM Pump (SN: 404314159 - 406294344) (2019) Manifold Assembly Parts Diagram

Z-Spray Intermediate Stand-on Sprayer, 5 GPM Pump

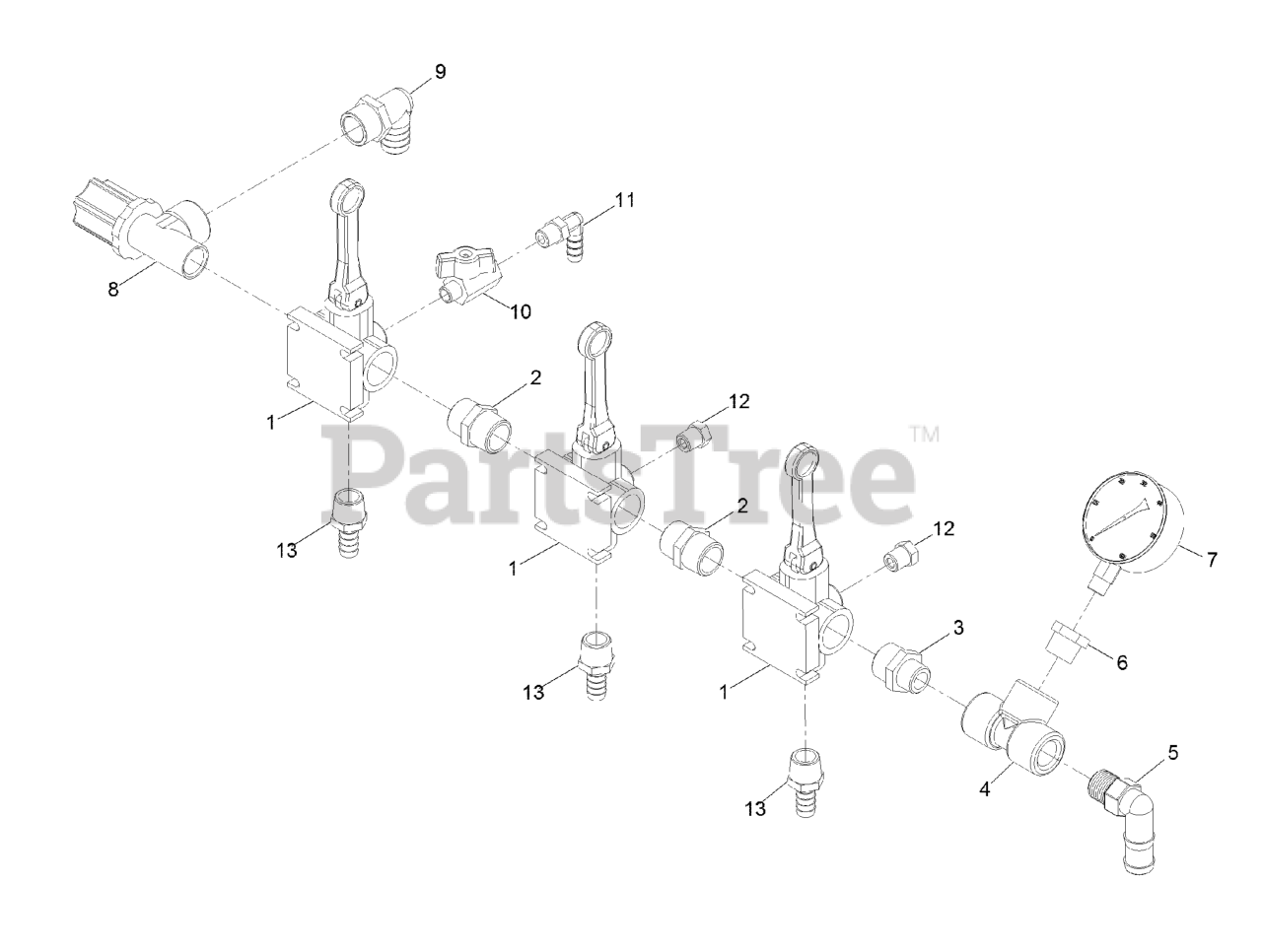

Manifold Assembly Parts Diagram

  • Title

1

Exmark 135-5721

VALVE-DIRECTO

$84.99

$

In Stock, Qty 9

0

2

Exmark 135-5741

FITTING-NIPPLE

$1.99

$

In Stock, only 3 left!

0

3

Exmark 135-5742

FITTING-NIPPLE

$1.99

$

In Stock, Qty 5

0

4

Exmark 94-7100

TEE

$11.99

$

In Stock, only 2 left!

0

5

Exmark 92-8557

ELBOW-90

$6.99

$

In Stock, only 2 left!

0

6

Exmark 135-5743

FITTING-REDUCER

$3.49

$

In Stock, only 2 left!

0

7

Exmark 135-5740

GAUGE
(Superseded to 142-3437)

$44.99

$

In Stock, Qty 7

0

8

Exmark 135-5736

VALVE-THROTTLE

$65.99

$

In Stock, Qty 8

0

9

Exmark 135-5772

FITTING-ELBOW, 90

$2.49

$

In Stock, only 2 left!

0

10

Exmark 135-5737

VALVE-CHROME, 1/4

$23.99

$

In Stock, only 2 left!

0

11

Exmark 135-5745

FITTING-ELBOW, 90

$1.99

$

In Stock, Qty 5

0

12

Exmark 135-5735

PLUG-VALVE

$0.99

$

In Stock, only 2 left!

0

13

Exmark 120-8671

FITTING-HOSEBARB

$2.49

$

In Stock, only 3 left!

0
