ZS4630XL - Exmark Z-Spray Intermediate Stand-on Sprayer, 7 GPM Pump (SN: 404314159 - 406294344) (2019) Tire and Wheel Assembly Parts Diagram

Z-Spray Intermediate Stand-on Sprayer, 7 GPM Pump

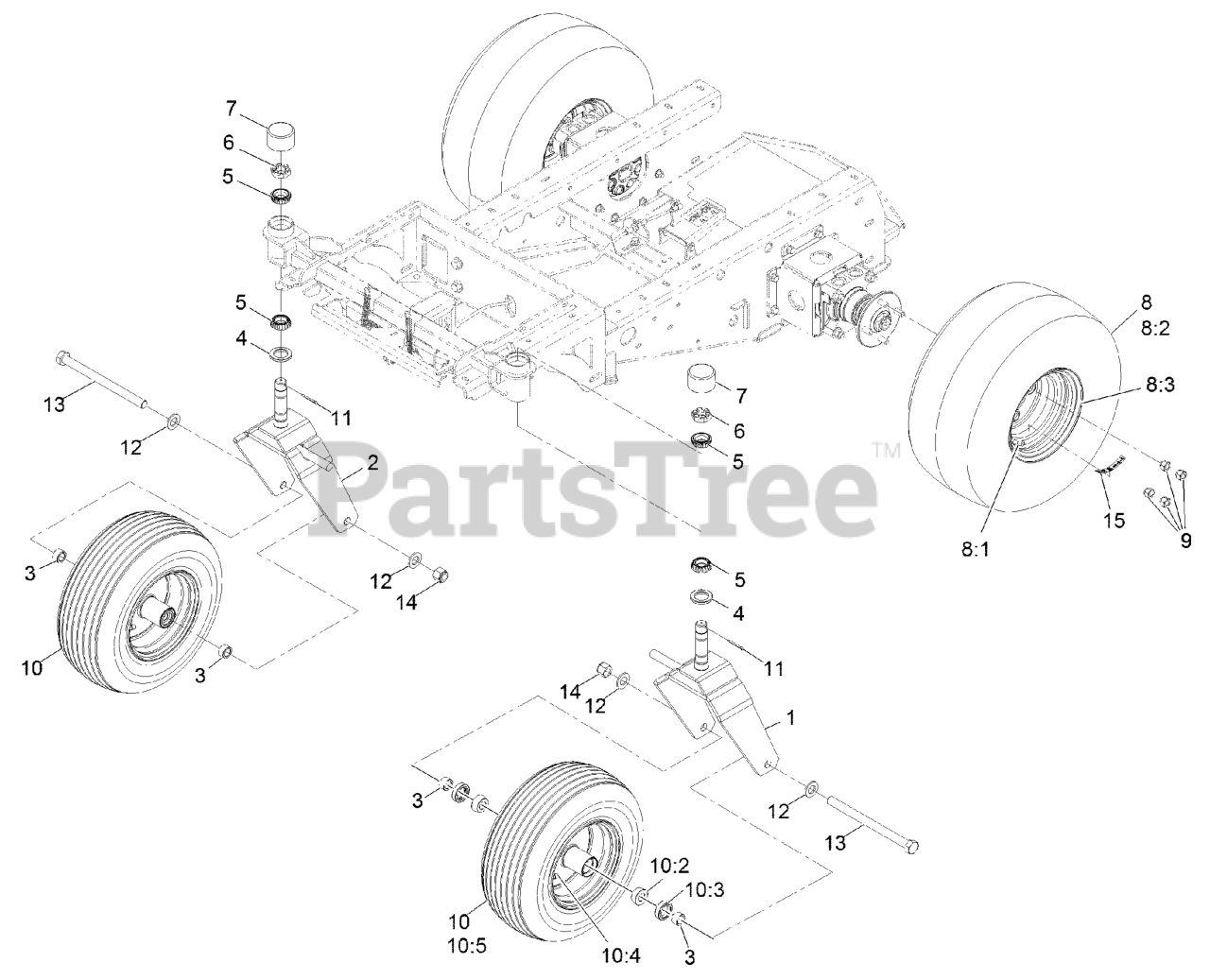

Tire and Wheel Assembly Parts Diagram

  • Title

1

Exmark 135-5441-03

Caster-Lt [black]
(Superseded to 135-5441-05)

$234.99

$

In Stock, only 2 left!

0

2

Exmark 135-5446-03

Caster-Rt [black]
(Superseded to 135-5446-05)

$234.99

$

In Stock, only 4 left!

0

3

Exmark 135-5683

SPACER-AXLE

$3.49

$

In Stock, Qty 17

0

4

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 14

0

5

Exmark 254-92

CONE-BEARING, OUTER

$20.99

$

In Stock, Qty 12

0

6

Exmark 1-809082

NUT-SHH

$15.99

$

In Stock, only 3 left!

0

7

Exmark 135-5756

CAP-DUST, RUBBER

$3.99

$

In Stock, only 3 left!

0

8

Exmark 135-5968

WHEEL AND TIRE ASM
(Superseded to 142-5507)

$267.99

$

Usually ships in 3-6 days

0

8:1

Exmark 135-5969

Rim-8 X 7, Black

$91.99

$

Usually ships in 3-6 days

0

8:2

Exmark 120-6466

TIRE

$143.99

$

In Stock, only 2 left!

0

8:3

Exmark 232-27

Stem-Valve

$

$

Not available

9

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

10

Exmark 135-5974

WHEEL AND TIRE
(Superseded to 142-5509)

$178.99

$

In Stock, Qty 20+

0

10:2

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$25.99

$

In Stock, Qty 20+

0

10:3

Exmark 103-0063

SEAL-CASTER

$10.99

$

In Stock, Qty 20+

0

10:4

Exmark 5108

VALVE

$8.49

$

Usually ships in 3-6 days

0

10:5

Exmark 135-5976

Tire-Rib

$124.99

$

Usually ships in 3-6 days

0

11

Exmark 135-6292

Pin-Cotter

$1.99

$

In Stock, only 3 left!

0

12

Exmark 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

13

Exmark 135-6300

SCREW-HH

$17.99

$

In Stock, only 2 left!

0

14

Exmark 3296-51

NUT-LOCK, NI

$7.49

$

In Stock, Qty 20+

0

15

Exmark 126-2055

DECAL-TORQUE, WHEEL HUB LUG

$6.99

$

In Stock, Qty 11

0
