ZSX3624 - Exmark Z-Spray Junior Stand-on Sprayer, 5.3 GPM Pump (SN: 416150475 - 417930745) (Rev B) (2024) Park Brake Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 5.3 GPM Pump

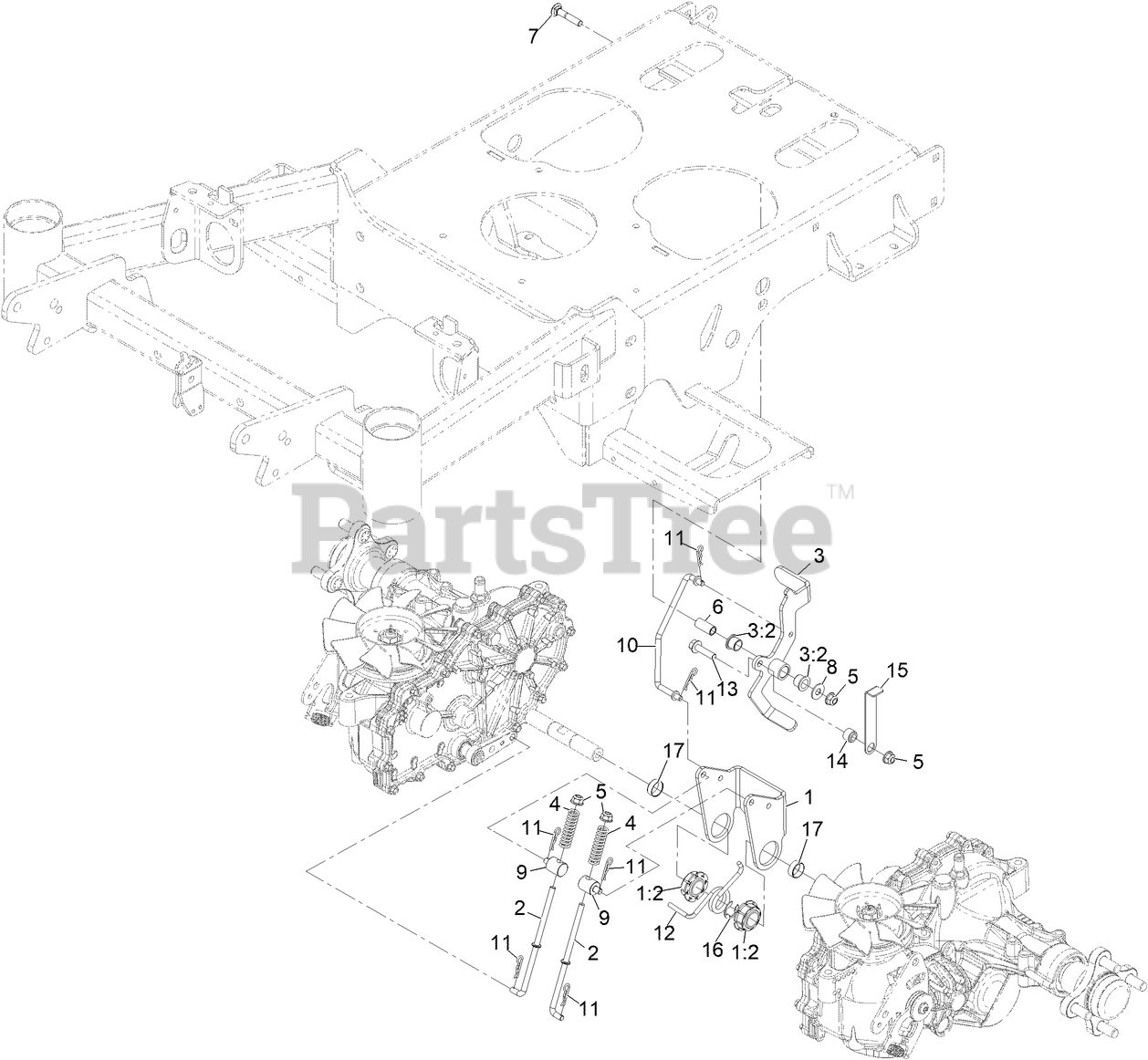

Park Brake Assembly Parts Diagram

  • Title

1

Exmark 142-6201

ASM-BRAKE, BELL CRANK

$132.99

$

Usually ships in 3-6 days

0

1:2

Exmark 142-4668

BEARING-SPHERICAL

$26.99

$

Usually ships in 3-6 days

0

2

Exmark 142-4669

ROD-BRAKE, LOWER

$41.99

$

Usually ships in 3-6 days

0

3

Exmark 142-6202

ASM-BRAKE, HANDLE

$177.99

$

Usually ships in 3-6 days

0

3:2

Exmark 116-4279

BEARING-FLANGE

$4.49

$

In Stock, Qty 20+

0

4

Exmark 142-4712

SPRING-COMPRESSION

$6.99

$

Usually ships in 3-6 days

0

5

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 15

0

6

Exmark 142-4674

SPACER-BRAKE

$33.99

$

Usually ships in 3-6 days

0

7

Exmark 131-9663

Screw-CARR

$1.49

$

In Stock, Qty 20+

0

8

Exmark HDW14535

FLAT WASHER, 5/16 NOM,ST

$1.49

$

In Stock, only 3 left!

0

9

Exmark 142-4646

FITTING-ROD

$44.99

$

Usually ships in 3-6 days

0

10

Exmark 142-4670

ROD-BRAKE, UPPER

$52.99

$

Usually ships in 3-6 days

0

11

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

12

Exmark 142-4713

SPRING-TORSION

$28.99

$

Usually ships in 3-6 days

0

13

Exmark 135-6261

SCREW-HHF

$2.49

$

In Stock, Qty 6

0

14

Exmark 142-6198

SPACER-BRAKE, INTERLOCK

$28.99

$

Usually ships in 3-6 days

0

15

Exmark 142-6197

PLATE-BRAKE, INTERLOCK

$12.99

$

Usually ships in 3-6 days

0

16

Exmark 142-4693

RETAINER, E-RING

$5.49

$

Usually ships in 3-6 days

0

17

Exmark 146-0649

BUSHING-SLEEVE

$5.49

$

Usually ships in 3-6 days

0
