ZSX3624 - Exmark Z-Spray Junior Stand-on Sprayer, 5.3 GPM Pump (SN: 417930746 & Above) (Rev B) (2025) Controls Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 5.3 GPM Pump

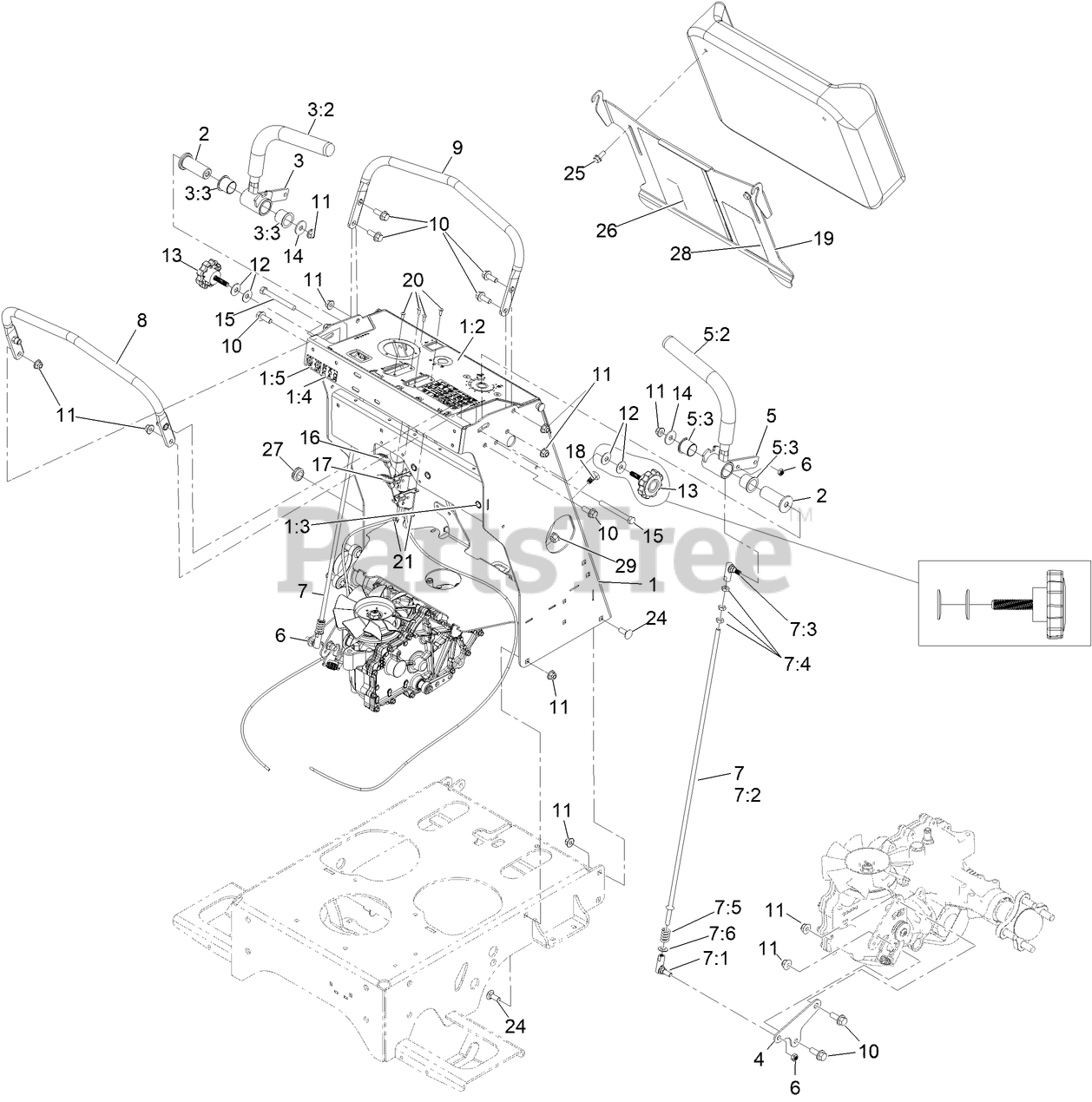

Controls Assembly Parts Diagram

  • Title

1

Exmark 142-7599

TOWER-ASM W/DECAL

$1212.99

$

Usually ships in 3-6 days

0

1:2

Exmark 142-8355

DECAL-CONTROL PANEL

$44.99

$

Usually ships in 3-6 days

0

1:3

Exmark 142-7574

NUT-CLINCH,HEX

$1.99

$

Usually ships in 3-6 days

0

1:4

Exmark 142-8079

DECAL-FUSE,MAIN

$3.49

$

Usually ships in 3-6 days

0

1:5

Exmark 142-8081

DECAL-FUSE,SOLID STATE

$3.49

$

Usually ships in 3-6 days

0

2

Exmark 142-4200

PIVOT-CONTROL, HANDLE

$48.99

$

Usually ships in 3-6 days

0

3

Exmark 142-3696

HANDLE-CONTROL, RH ASM

$205.99

$

Usually ships in 3-6 days

0

3:2

Exmark 1-633257

GRIP-CONTROL, MOTION

$15.99

$

In Stock, only 2 left!

0

3:3

Exmark 126-1963

BUSHING-PIVOT

$7.99

$

In Stock, Qty 7

0

4

Exmark 142-6192

ARM-CONTROL, RTN

$13.99

$

Usually ships in 3-6 days

0

5

Exmark 142-3697

HANDLE-CONTROL, LH ASM

$226.99

$

Usually ships in 3-6 days

0

5:2

Exmark 1-633257

GRIP-CONTROL, MOTION

$15.99

$

In Stock, only 2 left!

0

5:3

Exmark 126-1963

BUSHING-PIVOT

$7.99

$

In Stock, Qty 7

0

6

Exmark 142-5498

NUT-LOCK, NI

$1.99

$

Usually ships in 3-6 days

0

7

Exmark 142-4625

LINKAGE-MOTION CONTROL ASM

$106.99

$

Usually ships in 3-6 days

0

7:1

Exmark 135-5257

Balljoint-SS

$22.99

$

In Stock, only 2 left!

0

7:2

Exmark 142-4626

ROD-CONTROL, MOTION

$68.99

$

Usually ships in 3-6 days

0

7:3

Exmark 135-9812

3/8-24 SS BALL JOINT\N367

$22.99

$

Usually ships in 3-6 days

0

7:4

Exmark 107-0282

Nut-Hex

$0.99

$

In Stock, Qty 6

0

7:5

Exmark 142-6894

SPRING-COMPRESSION

$3.49

$

Usually ships in 3-6 days

0

7:6

Exmark 107-0279

WASHER

$1.99

$

Usually ships in 3-6 days

0

8

Exmark 142-7601

BAR-SPEED, ASM

$84.99

$

Usually ships in 3-6 days

0

9

Exmark 142-7600-05

BAR-REFERENCE

$84.99

$

Usually ships in 3-6 days

0

10

Exmark 135-6208

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

11

Exmark 135-6110

Nut-Hex Flange

$1.99

$

In Stock, Qty 15

0

12

Exmark 3290-461

WASHER-SPRING

$5.99

$

In Stock, only 1 left!

0

13

Exmark 142-5494

KNOB-FLUTED

$16.99

$

Usually ships in 3-6 days

0

14

Exmark 93-8806

WASHER-HARDENED

$2.49

$

In Stock, only 2 left!

0

15

Exmark HDW17725

HHCS,3/8-16X3-1/2,ST/ST 18-8

$5.49

$

Usually ships in 3-6 days

0

16

Exmark 142-6693

CONTROL-THROTTLE

$27.99

$

Usually ships in 3-6 days

0

17

Exmark 109-8747

CONTROL,CHOKE

$39.99

$

In Stock, only 2 left!

0

18

Exmark 142-7585

MAGNET-STUD, THREADED

$12.99

$

Usually ships in 3-6 days

0

19

Exmark 142-9349-05

PLATE-KNEE PAD

$106.99

$

Usually ships in 3-6 days

0

20

Exmark 135-6374

Screw-HSBH

$0.99

$

Usually ships in 3-6 days

0

21

Exmark 135-6342

Nut-Hex Flange

$2.49

$

In Stock, only 4 left!

0

24

Exmark 126-0980

SCREW-CARR

$1.99

$

In Stock, Qty 5

0

25

Exmark 126-2712

SCREW-HHF

$5.99

$

Usually ships in 3-6 days

0

26

Exmark 146-0776

DECAL-SPRAY CHART

$17.99

$

Usually ships in 3-6 days

0

27

Exmark 112-7069

GROMMET

$3.99

$

Usually ships in 3-6 days

0

28

Exmark 142-8050

DECAL-SERVICE AID

$17.99

$

Usually ships in 3-6 days

0

29

Exmark 103-9511

NUT-LOCK, NI

$2.99

$

In Stock, only 3 left!

0
