ZSX3624 - Exmark Z-Spray Junior Stand-on Sprayer, 5.3 GPM Pump (SN: 417930746 & Above) (Rev B) (2025) RH Hydraulic Transmission Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 5.3 GPM Pump

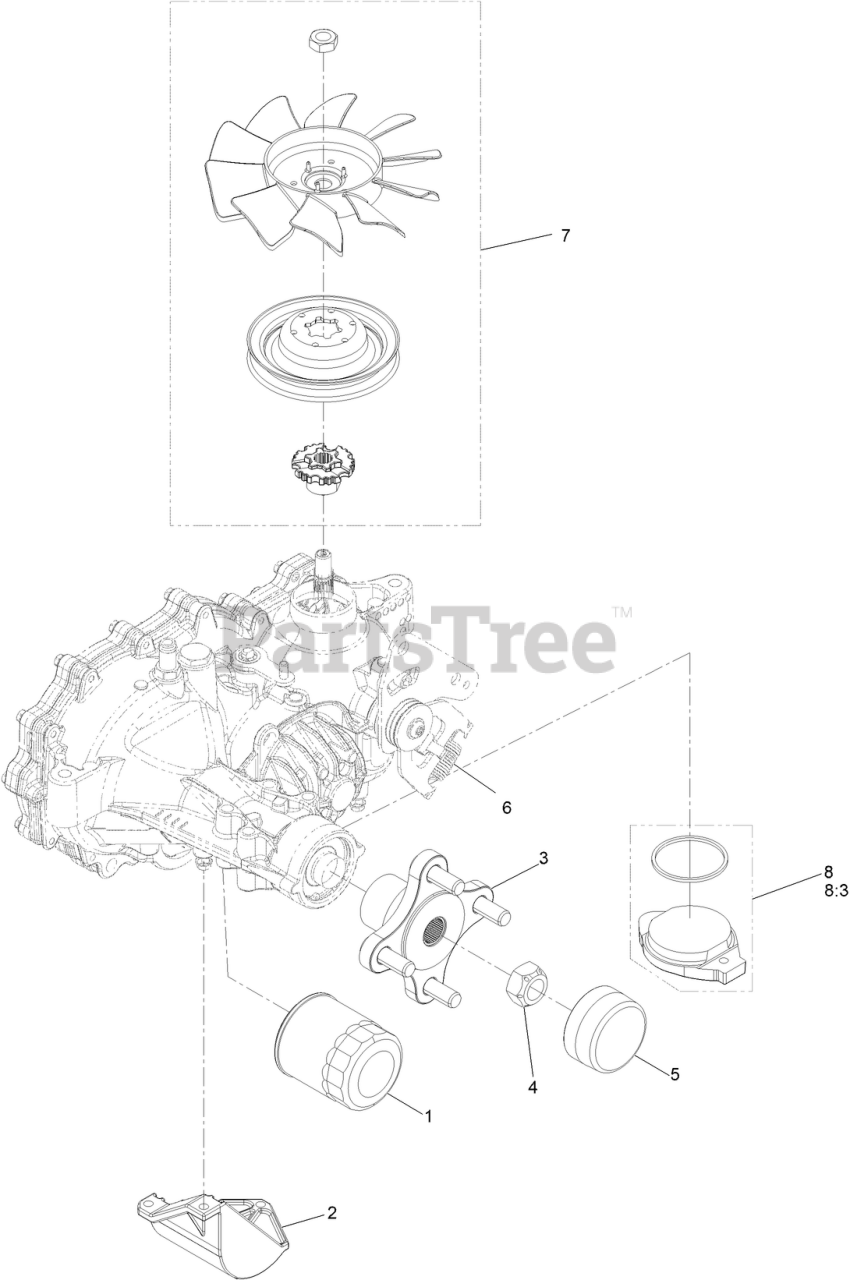

RH Hydraulic Transmission Assembly Parts Diagram

  • Title

1

Exmark 109-3321

ELEMENT-OIL FILTER, HYD

$30.99

$

In Stock, Qty 20+

0

1

Exmark 109-3321

ELEMENT-OIL FILTER, HYD

$30.99

$

In Stock, Qty 20+

0

2

Exmark 120-7981

GUARD-FILTER, RH

$42.99

$

Usually ships in 3-6 days

0

2

Exmark 120-7981

GUARD-FILTER, RH

$42.99

$

Usually ships in 3-6 days

0

2

Exmark 139-7499

FILTER GUARD KIT

$41.99

$

Usually ships in 3-6 days

0

2

Exmark 139-7499

FILTER GUARD KIT

$41.99

$

Usually ships in 3-6 days

0

3

Exmark 109-5939

HUB KIT

$121.99

$

In Stock, only 2 left!

0

3

Exmark 109-5939

HUB KIT

$121.99

$

In Stock, only 2 left!

0

4

Exmark 109-3536

NUT-HUB

$25.99

$

Usually ships in 3-6 days

0

4

Exmark 109-3536

NUT-HUB

$25.99

$

Usually ships in 3-6 days

0

5

Exmark 115-5057

COVER-NUT, AXLE

$19.99

$

Usually ships in 3-6 days

0

5

Exmark 115-5057

COVER-NUT, AXLE

$19.99

$

Usually ships in 3-6 days

0

6

Exmark 125-4684

SPRING-EXTENSION

$14.99

$

Usually ships in 3-6 days

0

6

Exmark 125-4684

SPRING-EXTENSION

$14.99

$

Usually ships in 3-6 days

0

7

Exmark 146-5912

KIT-FAN & PULLEY

$133.99

$

Usually ships in 3-6 days

0

7

Exmark 146-5912

KIT-FAN & PULLEY

$133.99

$

Usually ships in 3-6 days

0

7:1

Exmark 126-0226

FAN

$56.99

$

In Stock, only 2 left!

0

8

Exmark 114-8465

CHARGE KIT

$137.99

$

In Stock, only 1 left!

0

8:3

Exmark 109-3540

O RING-SEAL

$7.49

$

In Stock, Qty 20+

0

8

Exmark 114-8465

CHARGE KIT

$137.99

$

In Stock, only 1 left!

0

8:3

Exmark 109-3540

O RING-SEAL

$7.49

$

In Stock, Qty 20+

0

99

Exmark 121-3243

SEAL KIT

Note: Not illustrated

$241.99

$

Usually ships in 3-6 days

0

99

Exmark 135-2307

KIT-HYDRO SERVICE, H-G

Note: Not illustrated

$260.99

$

Usually ships in 3-6 days

0

99

Exmark 121-3243

SEAL KIT

Note: Not illustrated

$241.99

$

Usually ships in 3-6 days

0

99

Exmark 135-2307

KIT-HYDRO SERVICE, H-G

Note: Not illustrated

$260.99

$

Usually ships in 3-6 days

0
