ZSX3624 - Exmark Z-Spray Junior Stand-on Sprayer, 5.3 GPM Pump (SN: 417930746 & Above) (Rev B) (2025) Spray Boom Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 5.3 GPM Pump

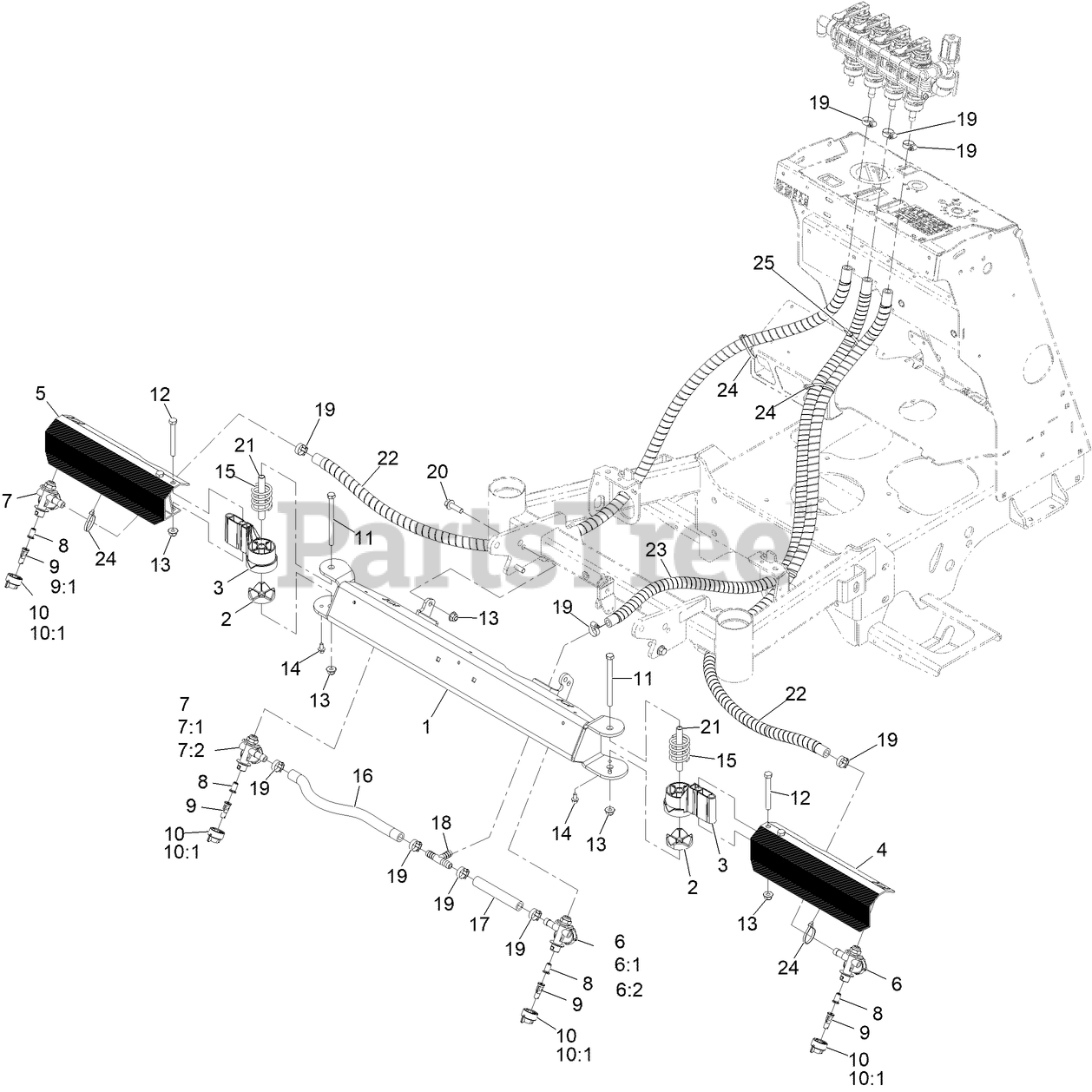

Spray Boom Assembly Parts Diagram

  • Title

1

Exmark 142-4709

BOOM-CENTER, WELDED

$657.99

$

Usually ships in 3-6 days

0

2

Exmark 142-3990

BOOM-PIVOT

$16.99

$

In Stock, only 2 left!

0

3

Exmark 142-6682

HINGE-BOOM

$13.99

$

In Stock, only 4 left!

0

4

Exmark 142-4710

BOOM-WING, LH

$66.99

$

Usually ships in 3-6 days

0

5

Exmark 142-4711

BOOM-WING, RH

$66.99

$

Usually ships in 3-6 days

0

6

Exmark 135-5788

BODY-NOZZLE, LEFT

$12.99

$

In Stock, Qty 20+

0

6:1

Exmark 95-9193

CAP-DIAPHRAM

$10.99

$

In Stock, only 2 left!

0

6:2

Exmark 142-1457

DIAPHRAGM FOR CHECK VALVE

$6.99

$

In Stock, only 2 left!

0

7

Exmark 135-5790

BODY-NOZZLE, RIGHT

$12.99

$

In Stock, Qty 20+

0

7:1

Exmark 146-1020

CAP-SPRAYER NOZZLE
(Superseded to 95-9193)

$10.99

$

In Stock, only 2 left!

0

7:2

Exmark 146-1021

DIAPHRAGM-SPRAYER NOZZLE
(Superseded to 142-1457)

$6.99

$

In Stock, only 2 left!

0

8

Exmark 126-3943

STRAINER-NOZZLE, 50M 5PSI

$25.99

$

In Stock, Qty 20+

0

9

Exmark 117-5838

NOZZLE-SPRAYER

Note: Optional Equipment

$11.99

$

Usually ships in 3-6 days

0

9

Exmark 117-5839

NOZZLE-SPRAYER

Note: Optional Equipment

$11.99

$

Usually ships in 3-6 days

0

9

Exmark 142-3306

TIP-SPRAY, 015

Note: Optional Equipment

$31.99

$

Usually ships in 3-6 days

0

9

Exmark 142-3307

TIP-SPRAY, 02

Note: Optional Equipment

$31.99

$

Usually ships in 3-6 days

0

9

Exmark 142-3308

TIP-SPRAY, 025

Note: Optional Equipment

$28.99

$

In Stock, Qty 20+

0

9

Exmark 142-3309

TIP-SPRAY, 03

Note: Optional Equipment

$31.99

$

Usually ships in 3-6 days

0

9

Exmark 142-3310

TIP-SPRAY, 04

Note: Optional Equipment

$25.99

$

Usually ships in 3-6 days

0

9

Exmark 142-3311

TIP-SPRAY, 05

Note: Optional Equipment

$30.99

$

In Stock, Qty 5

0

9

Exmark 142-3312

TIP-SPRAY, 06

Note: Optional Equipment

$25.99

$

Usually ships in 3-6 days

0

9

Exmark 146-0633

TIP-SPRAY, XRC11020

Note: Optional Equipment

$7.99

$

Usually ships in 3-6 days

0

9:1

Exmark 40998

SEAT-GASKET

$1.99

$

In Stock, Qty 14

0

10

Exmark 135-5781

CAP-NOZZLE

$11.99

$

In Stock, Qty 19

0

10:1

Exmark 40998

SEAT-GASKET

$1.99

$

In Stock, Qty 14

0

11

Exmark 142-7327

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

12

Exmark 126-2661

SCREW-HH

$5.99

$

In Stock, only 3 left!

0

13

Exmark 135-6110

Nut-Hex Flange

$1.99

$

In Stock, Qty 15

0

14

Exmark 142-5490

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

15

Exmark 142-6880

SPRING-COMPRESSION

$3.99

$

In Stock, only 2 left!

0

16

Exmark 135-7129

Hose-Spray

$11.99

$

Usually ships in 3-6 days

0

17

Exmark 135-6298

Hose-Spray

$5.99

$

Usually ships in 3-6 days

0

18

Exmark 126-0968

FITTING-TEE

$5.99

$

Usually ships in 3-6 days

0

19

Exmark 2412-36

CLAMP-HOSE

$2.49

$

In Stock, only 1 left!

0

20

Exmark 135-6211

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

21

Exmark 142-4069

SPACER-BOOM, PIVOT

$9.99

$

In Stock, only 2 left!

0

22

Exmark 142-7887

HOSE-SPRAY, WRAPPED

$150.99

$

Usually ships in 3-6 days

0

23

Exmark 142-7308

HOSE-SPRAY, WRAPPED

$133.99

$

Usually ships in 3-6 days

0

24

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

25

Exmark 32180-030

CLIP-TIE

$5.49

$

In Stock, only 3 left!

0
