ZSX3624 - Exmark Z-Spray Junior Stand-on Sprayer, 5.3 GPM Pump (SN: 417930746 & Above) (Rev B) (2025) Spray Gun Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 5.3 GPM Pump

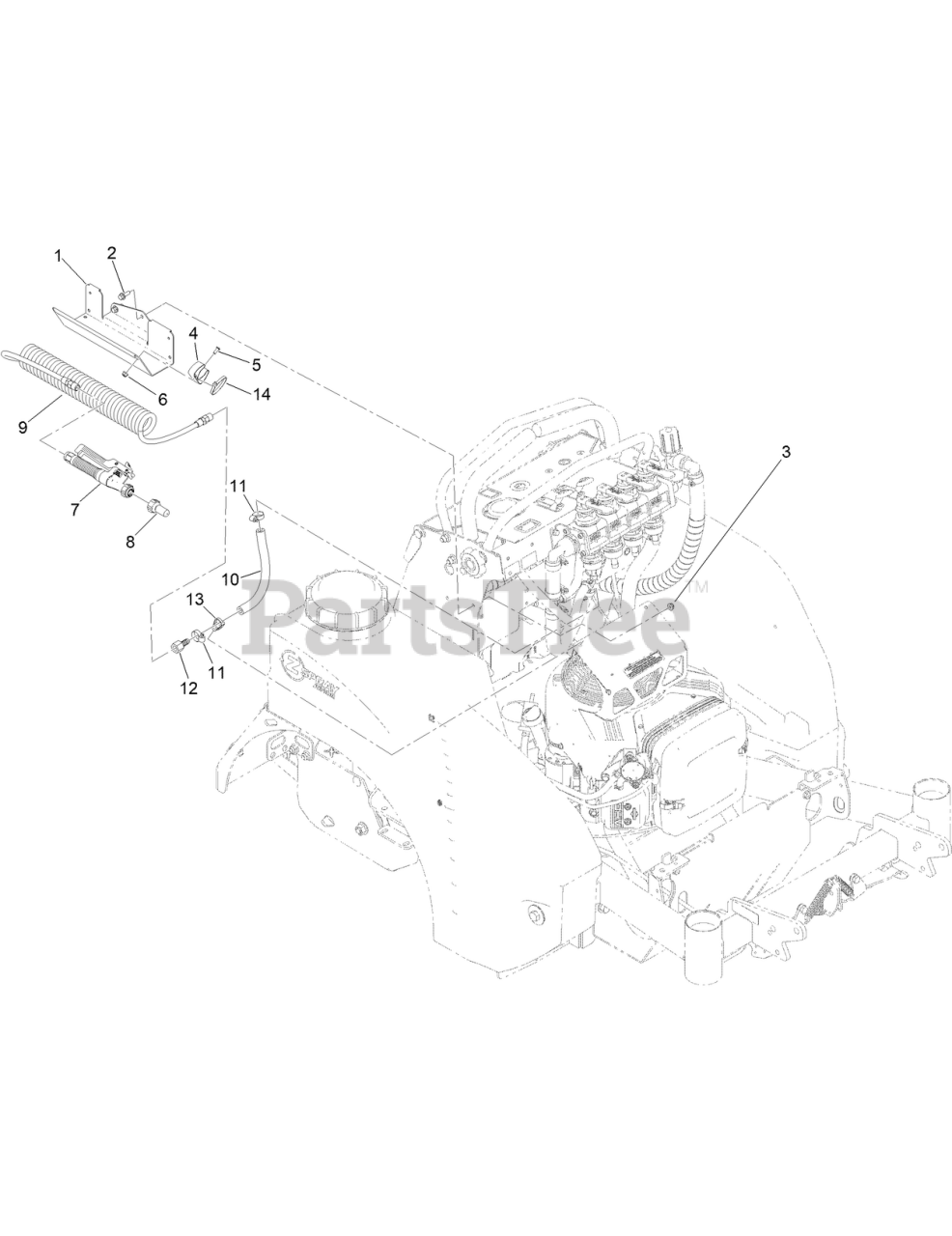

Spray Gun Assembly Parts Diagram

  • Title

1

Exmark 142-7609

TRAY-HOSE

$100.99

$

Usually ships in 3-6 days

0

2

Exmark 135-6221

Screw-HHF

$1.99

$

In Stock, Qty 8

0

3

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, only 2 left!

0

4

Exmark 135-5661

Holder-Tool, Clip

$5.99

$

Usually ships in 3-6 days

0

5

Exmark 135-6374

Screw-HSBH

$0.99

$

Usually ships in 3-6 days

0

6

Exmark 135-6342

Nut-Hex Flange

$2.49

$

In Stock, Qty 5

0

7

Exmark 135-5773

GUN-SPRAY, SPOT

$74.99

$

In Stock, Qty 9

0

8

Exmark 135-5778

TIP-SPRAY, #12 SPOT

$28.99

$

In Stock, Qty 8

0

9

Exmark 135-6612

HOSE-COILED, 15 FT

$110.99

$

In Stock, only 3 left!

0

10

Exmark 135-6162

Hose-Spray

$11.99

$

Usually ships in 3-6 days

0

11

Exmark 2412-36

CLAMP-HOSE

$2.49

$

In Stock, Qty 5

0

12

Exmark 354-94

Fitting-Female, Barbed

$12.99

$

In Stock, only 2 left!

0

13

Exmark 32180-030

CLIP-TIE

$5.49

$

In Stock, only 3 left!

0

14

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
