ZSX3624 - Exmark Z-Spray Junior Stand-on Sprayer, 5.3 GPM Pump (SN: 417930746 & Above) (Rev B) (2025) Spray System Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 5.3 GPM Pump

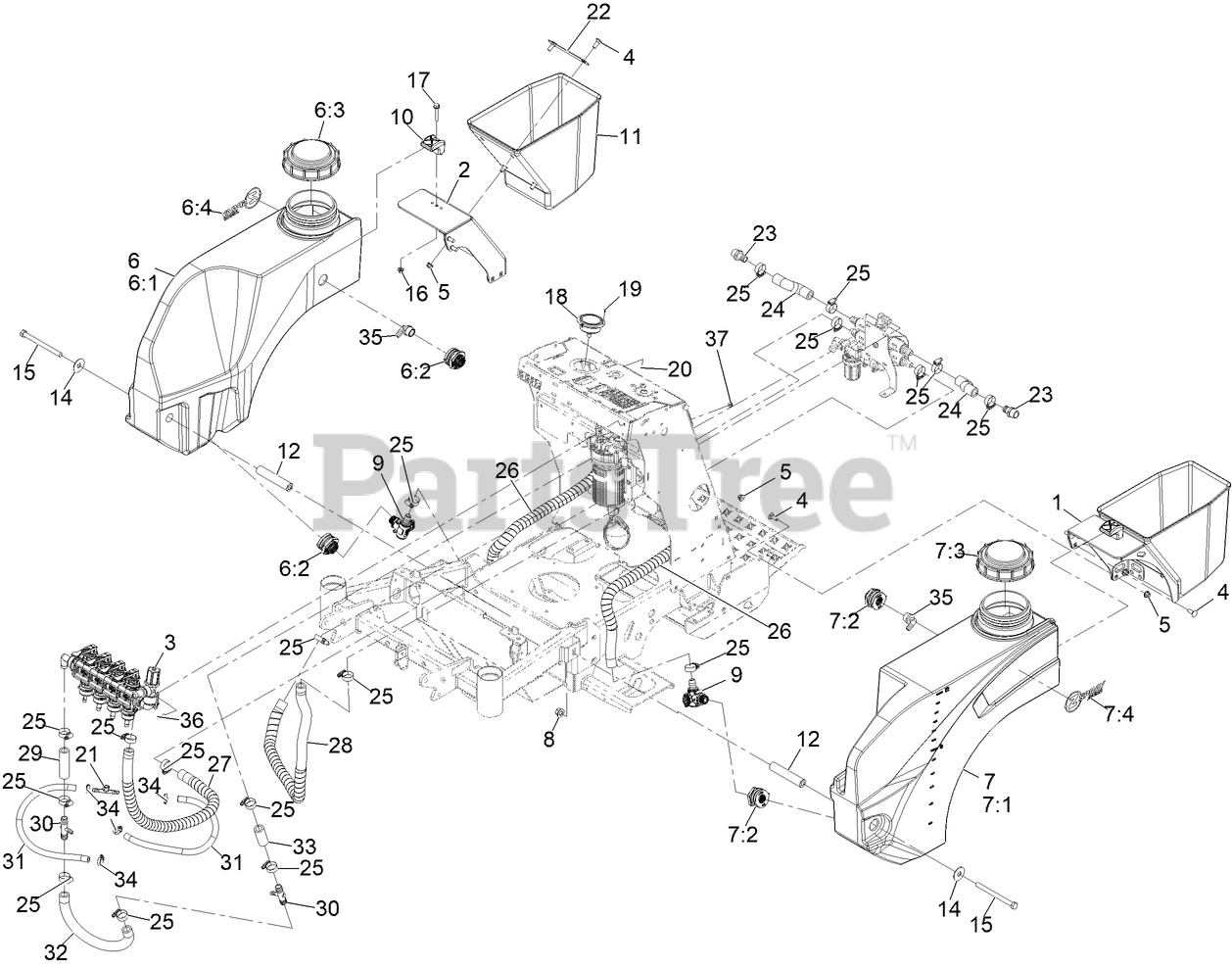

Spray System Assembly Parts Diagram

  • Title

1

Exmark 142-6357

FENDER-LT

$477.99

$

Usually ships in 3-6 days

0

2

Exmark 142-6359

FENDER-RT

$422.99

$

Usually ships in 3-6 days

0

3

Exmark 142-7050

ASM-MANIFOLD, SPRAY

$399.99

$

Usually ships in 3-6 days

0

4

Exmark 126-0980

SCREW-CARR

$1.99

$

In Stock, Qty 5

0

5

Exmark 135-6110

Nut-Hex Flange

$1.99

$

In Stock, Qty 15

0

6

Exmark 142-6356

TANK-12GAL, RT

$511.99

$

Usually ships in 3-6 days

0

6:1

Exmark 142-6355

Tank-12Gal, Rt

$

$

Currently unavailable

6:2

Exmark 126-4393

FITTING-BULKHEAD

$19.99

$

In Stock, only 2 left!

0

6:3

Exmark 135-5916

CAP-TANK, SPRAY

$13.99

$

Usually ships in 3-6 days

0

6:4

Exmark 142-7948

DECAL-Z-SPRAY JUNIOR LOGO

$28.99

$

Usually ships in 3-6 days

0

7

Exmark 142-6354

TANK-12GAL, LT

$511.99

$

Usually ships in 3-6 days

0

7:1

Exmark 142-6353

Tank-12Gal, Lt

$

$

Currently unavailable

7:2

Exmark 126-4393

FITTING-BULKHEAD

$19.99

$

In Stock, only 2 left!

0

7:3

Exmark 135-5916

CAP-TANK, SPRAY

$13.99

$

Usually ships in 3-6 days

0

7:4

Exmark 142-7948

DECAL-Z-SPRAY JUNIOR LOGO

$28.99

$

Usually ships in 3-6 days

0

8

Exmark 135-6111

NUT-HEX FLANGE

$7.49

$

Usually ships in 3-6 days

0

9

Exmark 142-4468

VALVE-3 WAY

$93.99

$

In Stock, only 2 left!

0

10

Exmark 107-4543

CLAMP

$15.99

$

Usually ships in 3-6 days

0

11

Exmark 142-6364

BOX-FERTILZER, JR36

$157.99

$

Usually ships in 3-6 days

0

12

Exmark 142-6361

SPACER-TANK

$52.99

$

Usually ships in 3-6 days

0

14

Exmark 142-7591

WASHER-FLAT, 1/2, SS

$3.49

$

In Stock, only 2 left!

0

15

Exmark HDW17767

HHCS,1/2-13X6 ST/ST,18-8

$9.99

$

Usually ships in 3-6 days

0

16

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 15

0

17

Exmark 126-2711

SCREW-HHF

$8.99

$

Usually ships in 3-6 days

0

18

Exmark 126-4110

GAUGE-PRESSURE

$212.99

$

In Stock, only 1 left!

0

19

Exmark 363-6518

SCR,MCH,6-32X3/8,PHPH,SST,ROHS

$

$

Currently unavailable

20

Exmark 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 7

0

21

Exmark 126-2348

FITTING-TEE

$18.99

$

Usually ships in 3-6 days

0

22

Exmark 142-6890

PLATE-BACKING, FERT BOX

$5.99

$

Usually ships in 3-6 days

0

23

Exmark 41257

HOSEBARB

$2.99

$

Usually ships in 3-6 days

0

24

Exmark 142-7056

HOSE-RETURN

$12.99

$

Usually ships in 3-6 days

0

25

Exmark 2412-129

CLAMP-HOSE

$5.99

$

In Stock, only 3 left!

0

26

Exmark 142-7080

HOSE-SPRAY, WRAPPED

$33.99

$

Usually ships in 3-6 days

0

27

Exmark 142-7613

HOSE-SPRAY, WRAPPED

$34.99

$

Usually ships in 3-6 days

0

28

Exmark 135-7087

Hose-Spray, Wrapped

$35.99

$

Usually ships in 3-6 days

0

29

Exmark 142-6907

HOSE-SPRAY

$5.99

$

Usually ships in 3-6 days

0

30

Exmark 142-4450

TEE-HOSE BARB

$5.49

$

Usually ships in 3-6 days

0

31

Exmark 142-7062

HOSE-SPRAY

$13.99

$

Usually ships in 3-6 days

0

32

Exmark 135-6164

Hose-Spray

$17.99

$

Usually ships in 3-6 days

0

33

Exmark 142-7066

HOSE-SPRAY

$6.99

$

Usually ships in 3-6 days

0

34

Exmark 2412-36

CLAMP-HOSE

$2.49

$

In Stock, only 1 left!

0

35

Exmark 135-5744

FITTING-ELBOW, 90

$2.49

$

In Stock, only 3 left!

0

36

Exmark 135-6221

Screw-HHF

$1.99

$

In Stock, Qty 8

0

37

Exmark 135-6108

Nut-Hex Flange

$1.99

$

Usually ships in 3-6 days

0
