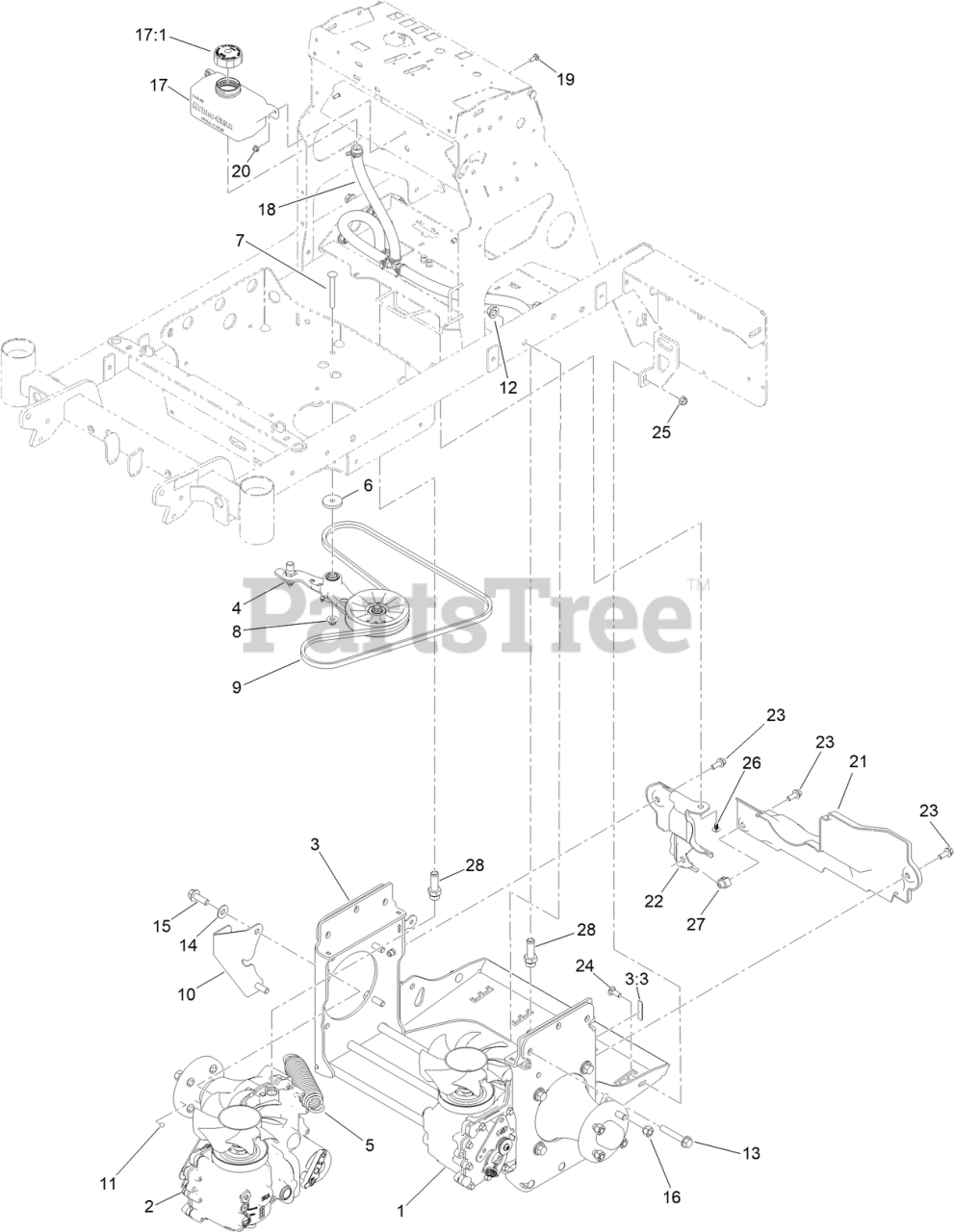

ZSX4640 - Exmark Z-Spray Intermediate Stand-on Sprayer, 5.3 GPM Pump (SN: 413950474 - 416150474) (Rev C) (2023) Hydraulic Transmission Assembly Parts Diagram

Z-Spray Intermediate Stand-on Sprayer, 5.3 GPM Pump

Hydraulic Transmission Assembly Parts Diagram

  • Title

1

Exmark 142-4466

ZT5400-LEFT

$2252.99

$

Usually ships in 3-6 days

0

2

Exmark 142-4467

ZT5400-RIGHT

$2252.99

$

Usually ships in 3-6 days

0

3

Exmark 142-7500

FRAME-ASM, ZT5400

$

$

Currently unavailable

3:3

Exmark 120-9570

DECAL-WARNING

$1.49

$

In Stock, only 4 left!

0

4

Exmark 142-8915

ASM-PUMP IDLER

$147.99

$

In Stock, only 2 left!

0

5

Exmark 116-6317

SPRING-EXTENSION

$31.99

$

In Stock, Qty 18

0

6

Exmark 110-9981

WASHER-PLAIN
(Superseded to 110-9981)

$16.99

$

In Stock, Qty 20+

0

7

Exmark 116-1502

BOLT-SHOULDER, CARRIAGE 3/8-16 X 3 1/2

$8.49

$

In Stock, Qty 7

0

8

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 142-9347

BELT-V, COGGED

$57.99

$

In Stock, only 2 left!

0

10

Exmark 142-4446

BRACKET-SENSOR, SPEED

$31.99

$

Usually ships in 3-6 days

0

11

Exmark 135-8903

MAGNET, SPEEDOMETER

$5.49

$

Usually ships in 3-6 days

0

12

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 20+

0

13

Exmark 3234-40

SCREW-HF

$14.99

$

Usually ships in 3-6 days

0

14

Exmark 109-9505

WASHER-SPRING

$5.99

$

In Stock, Qty 16

0

15

Exmark 100-6116

SCREW-HHF

$10.99

$

Usually ships in 3-6 days

0

16

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

17

Exmark 119-9908

HYDRAULIC RESERVOIR ASM

$69.99

$

In Stock, only 2 left!

0

17:1

Exmark 109-3320

CAP-RESERVOIR, HYD

$31.99

$

In Stock, only 2 left!

0

18

Exmark 142-7303

ASM-HOSE, EXPANSION

$79.99

$

Usually ships in 3-6 days

0

19

Exmark HDW20143

BOLT,CARRIAGE,1/4-20X3/4,ST/ST

$0.99

$

Usually ships in 3-6 days

0

20

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, only 2 left!

0

21

Exmark 142-8956

COVER-REAR, LT

$79.99

$

Usually ships in 3-6 days

0

22

Exmark 142-8957

COVER-REAR, RT

$68.99

$

Usually ships in 3-6 days

0

23

Exmark 135-6208

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

24

Exmark 126-0980

SCREW-CARR

$1.99

$

In Stock, Qty 5

0

25

Exmark 135-6110

Nut-Hex Flange

$1.99

$

In Stock, Qty 15

0

26

Exmark 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

27

Exmark 105-4886

NUT-TINNERMAN

$3.49

$

In Stock, only 4 left!

0

28

Exmark 142-7584

FITTING-STRAIGHT, 5/8 HOSE BARB

$44.99

$

Usually ships in 3-6 days

0
