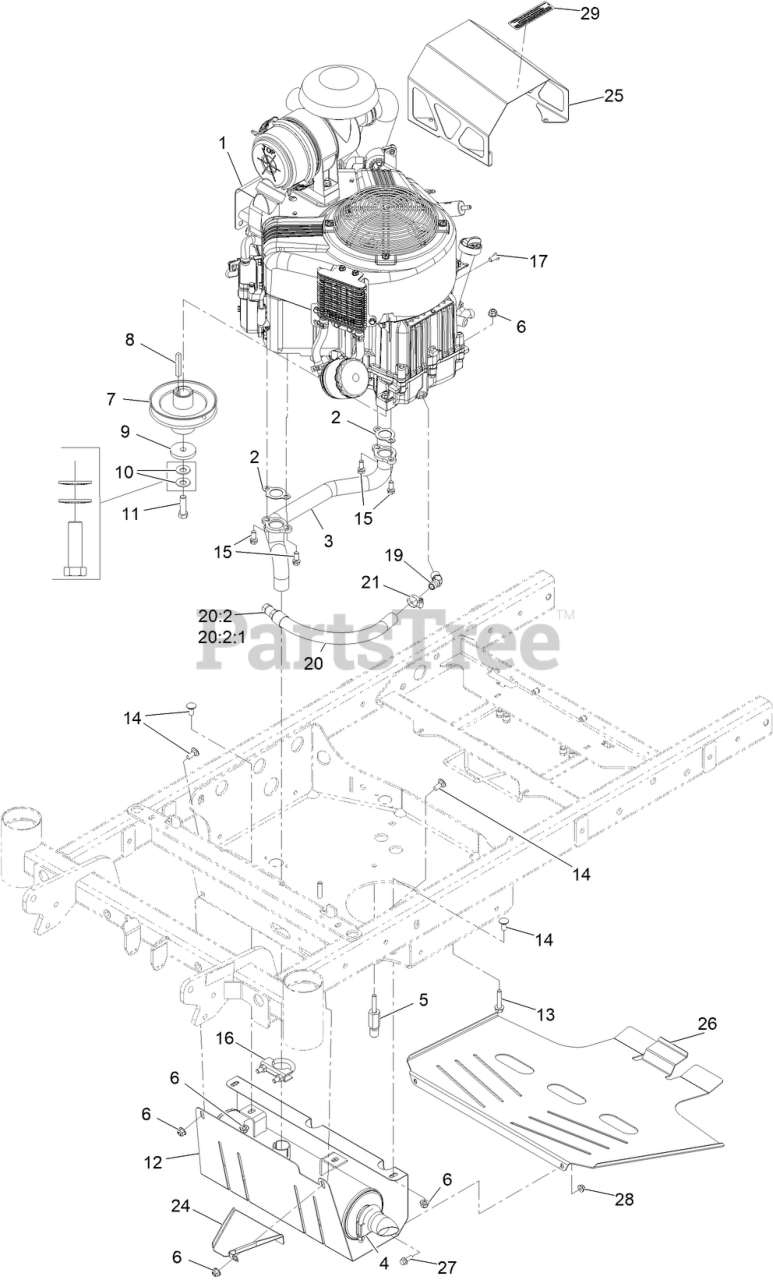

ZSX5260 - Exmark Z-Spray Z-Max Stand-on Sprayer, 5.3 GPM Pump (SN: 417930746 & Above) (Rev B) (2025) Engine Assembly Parts Diagram

Z-Spray Z-Max Stand-on Sprayer, 5.3 GPM Pump

Engine Assembly Parts Diagram

  • Title

1

Exmark 146-0661

ENGINE-VANGUARD, 23HP VERT.

$4219.99

$

Usually ships in 3-6 days

0

2

Exmark 94-3449

USE 94-5844
(Superseded to 94-5844)

$15.99

$

In Stock, only 2 left!

0

3

Exmark 142-5567

MANIFOLD-MUFFLER

$176.99

$

Usually ships in 3-6 days

0

4

Exmark 142-5566

MUFFLER

$317.99

$

Usually ships in 3-6 days

0

5

Exmark 142-3849

PIN-SPRING ANCHOR

$33.99

$

Usually ships in 3-6 days

0

6

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 15

0

7

Exmark 142-3845

PULLEY-ENGINE

$42.99

$

Usually ships in 3-6 days

0

8

Exmark 103-4177

KEY

$5.99

$

In Stock, only 2 left!

0

9

Exmark 109-6919

WASHER-CLUTCH

$8.99

$

In Stock, Qty 6

0

10

Exmark 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

11

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

$5.99

$

In Stock, Qty 11

0

12

Exmark 142-3842

GUARD-MUFFLER

$131.99

$

Usually ships in 3-6 days

0

13

Exmark 142-0559

5/16-18X 1-1/2 HEX FLANGE
(Superseded to 323-43)

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 126-0695

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

15

Exmark 3274-96

SCREW-HSBH

$3.49

$

Usually ships in 3-6 days

0

16

Exmark 2112-11

Clamp-Muffler

$8.99

$

In Stock, Qty 15

0

17

Exmark 110-0032

SCREW-BHTORX

$3.49

$

Usually ships in 3-6 days

0

19

Exmark 116-2570

ELBOW

$44.99

$

Usually ships in 3-6 days

0

20

Exmark 142-6685

OIL DRAIN HOSE W/PLUG

$44.99

$

Usually ships in 3-6 days

0

20:2

Exmark 353-508

PLUG-HH

$9.49

$

In Stock, only 1 left!

0

20:2:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

21

Exmark 2412-36

CLAMP-HOSE

$2.49

$

In Stock, only 1 left!

0

24

Exmark 142-7578

PLATE-PAN, OIL

$27.99

$

Usually ships in 3-6 days

0

25

Exmark 142-7868

COVER-ENGINE

$95.99

$

Usually ships in 3-6 days

0

26

Exmark 146-0653

PAN-BELLY

$215.99

$

Usually ships in 3-6 days

0

27

Exmark 135-6221

Screw-HHF

$1.99

$

In Stock, Qty 8

0

28

Exmark 135-6108

Nut-Hex Flange

$1.99

$

Usually ships in 3-6 days

0

29

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$3.49

$

Usually ships in 3-6 days

0
